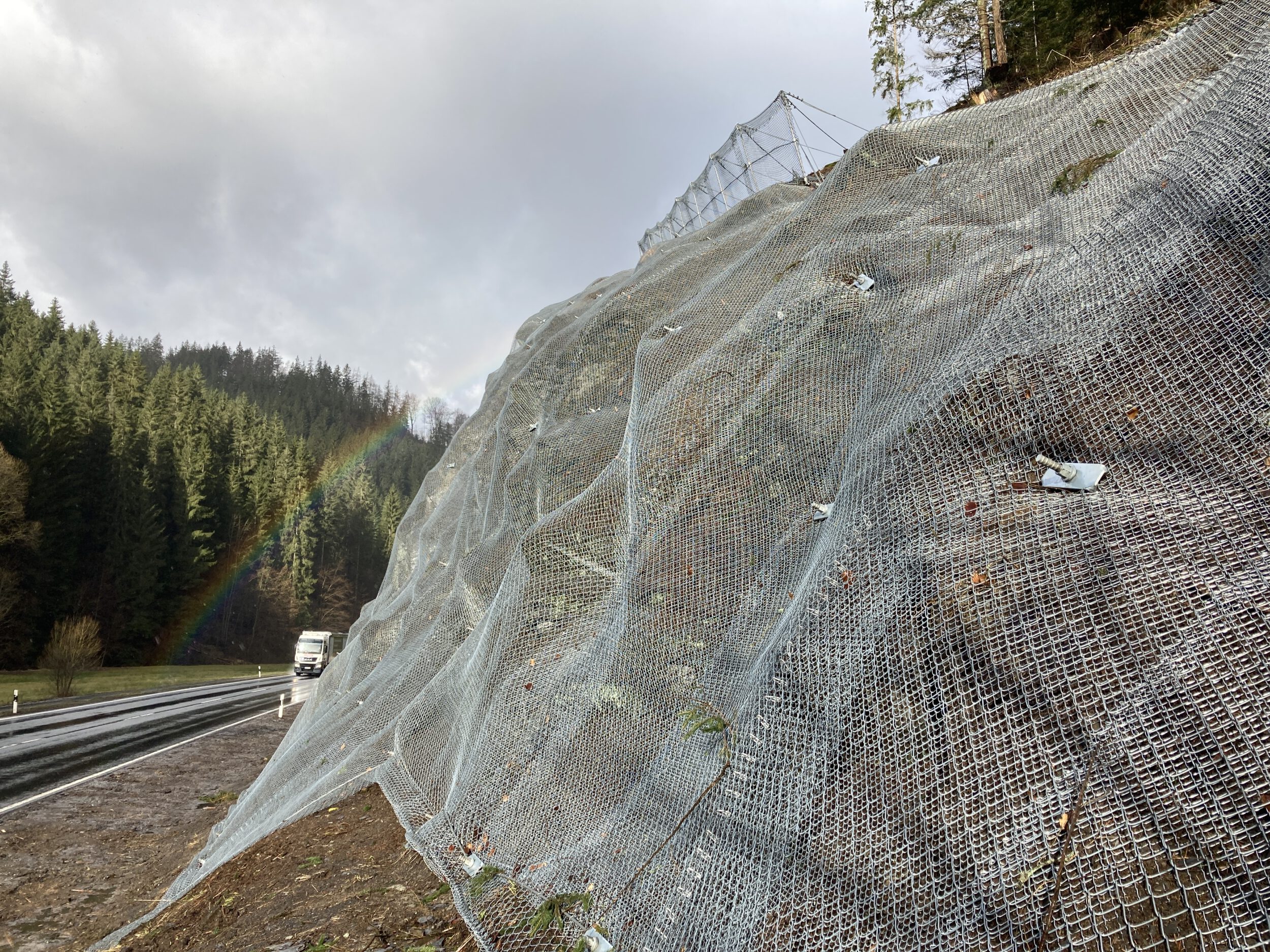

Das Bild zeigt eine steile Straßenböschung, die vollständig mit einem engmaschigen Drahtnetz gesichert ist. Das Netz liegt in mehreren überlappenden Schichten über der Böschung und wird durch Befestigungspunkte stabilisiert. Links verläuft eine Straße mit einem Lkw, dahinter erstreckt sich ein dichter Wald, und im Hintergrund ist ein Regenbogen vor einem bewölkten Himmel zu sehen.

Rock stabilisation on the B173 west of Schwarzenbach am Wald

Order
Rock assessment, recommendation of measures, planning and dimensioning of the safety structures including construction supervision
Building owner
Staatliches Bauamt Bayreuth
Wilhelminenstrasse 2
95444 Bayreuth

Description

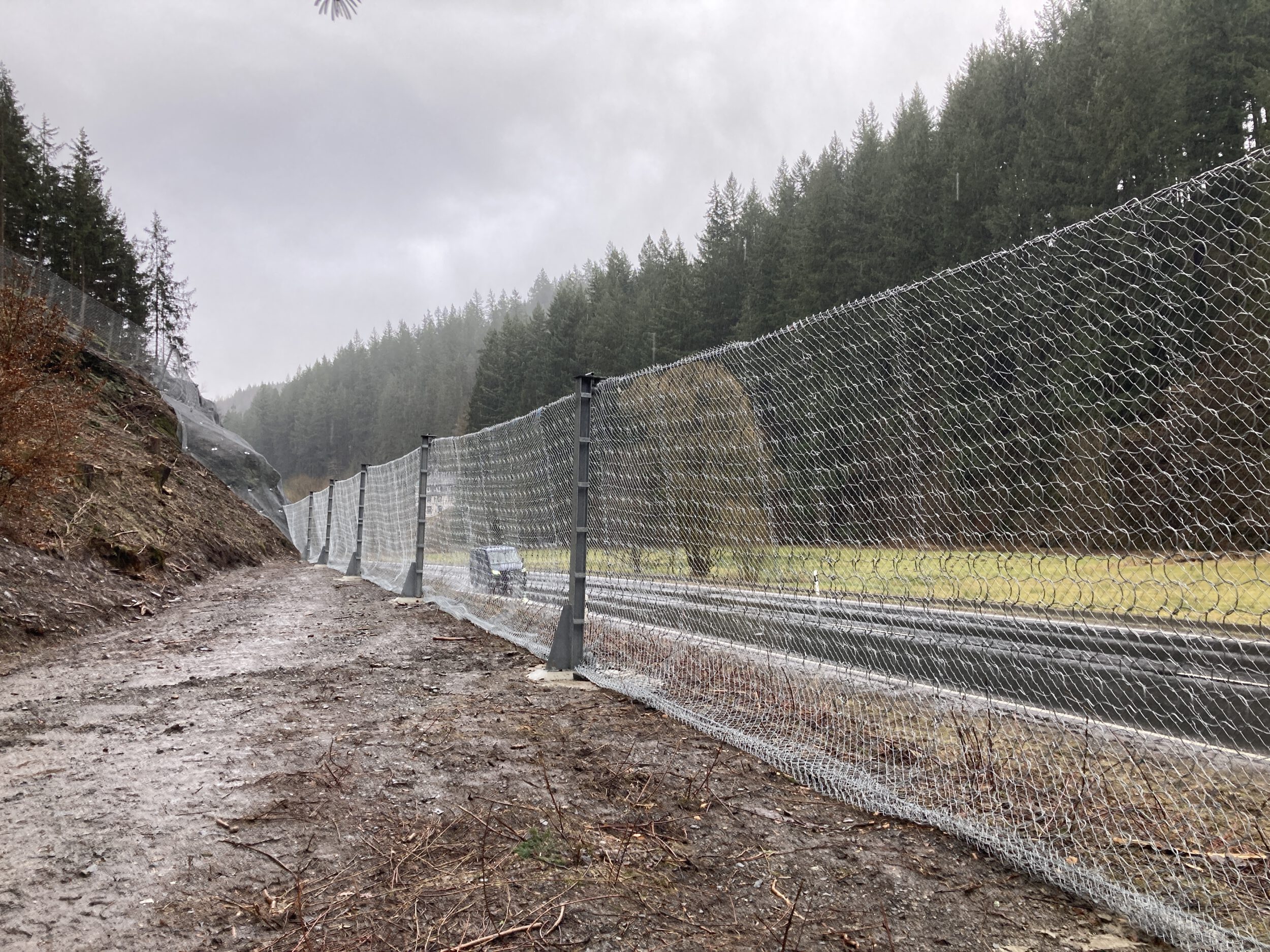

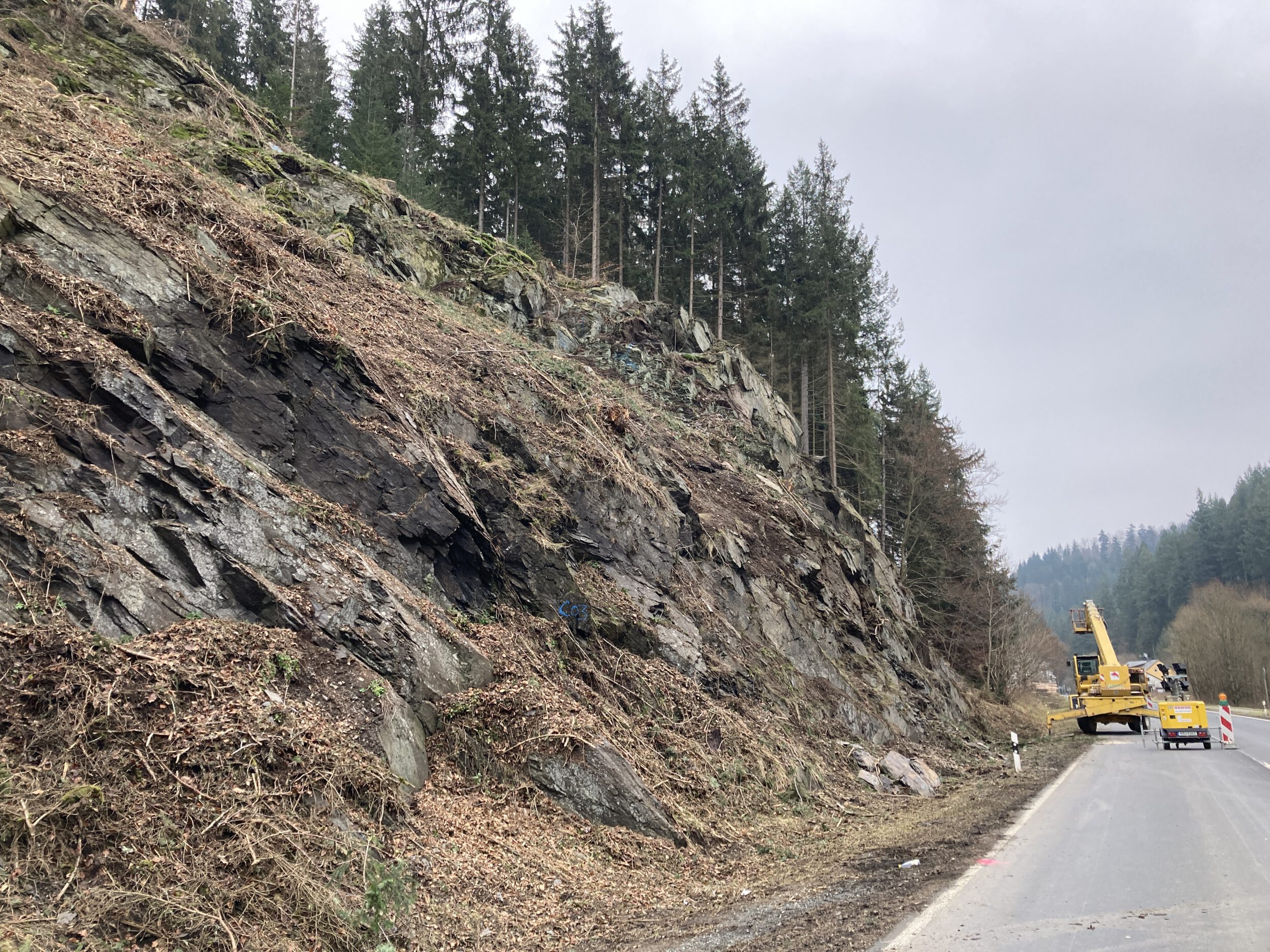

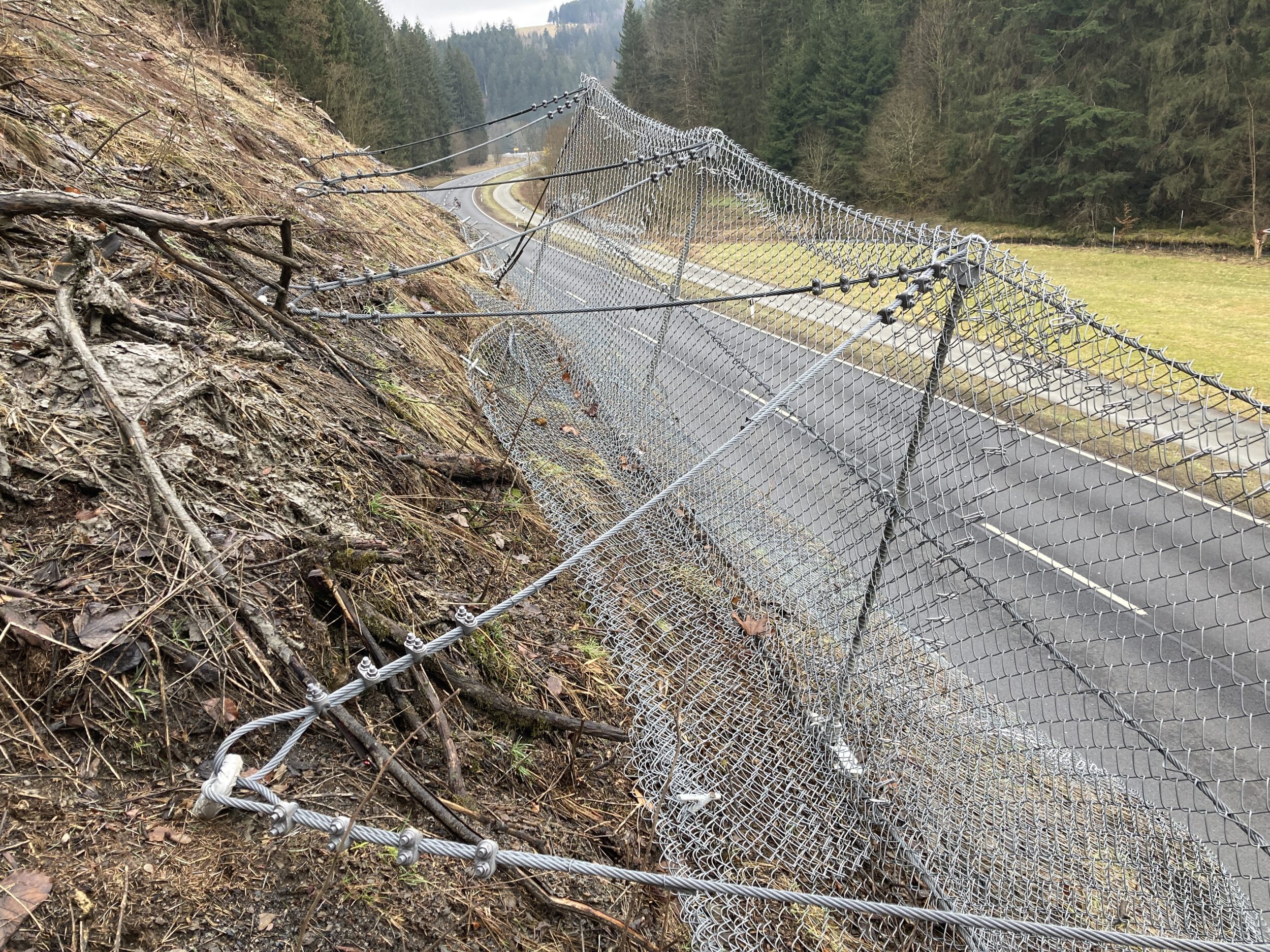

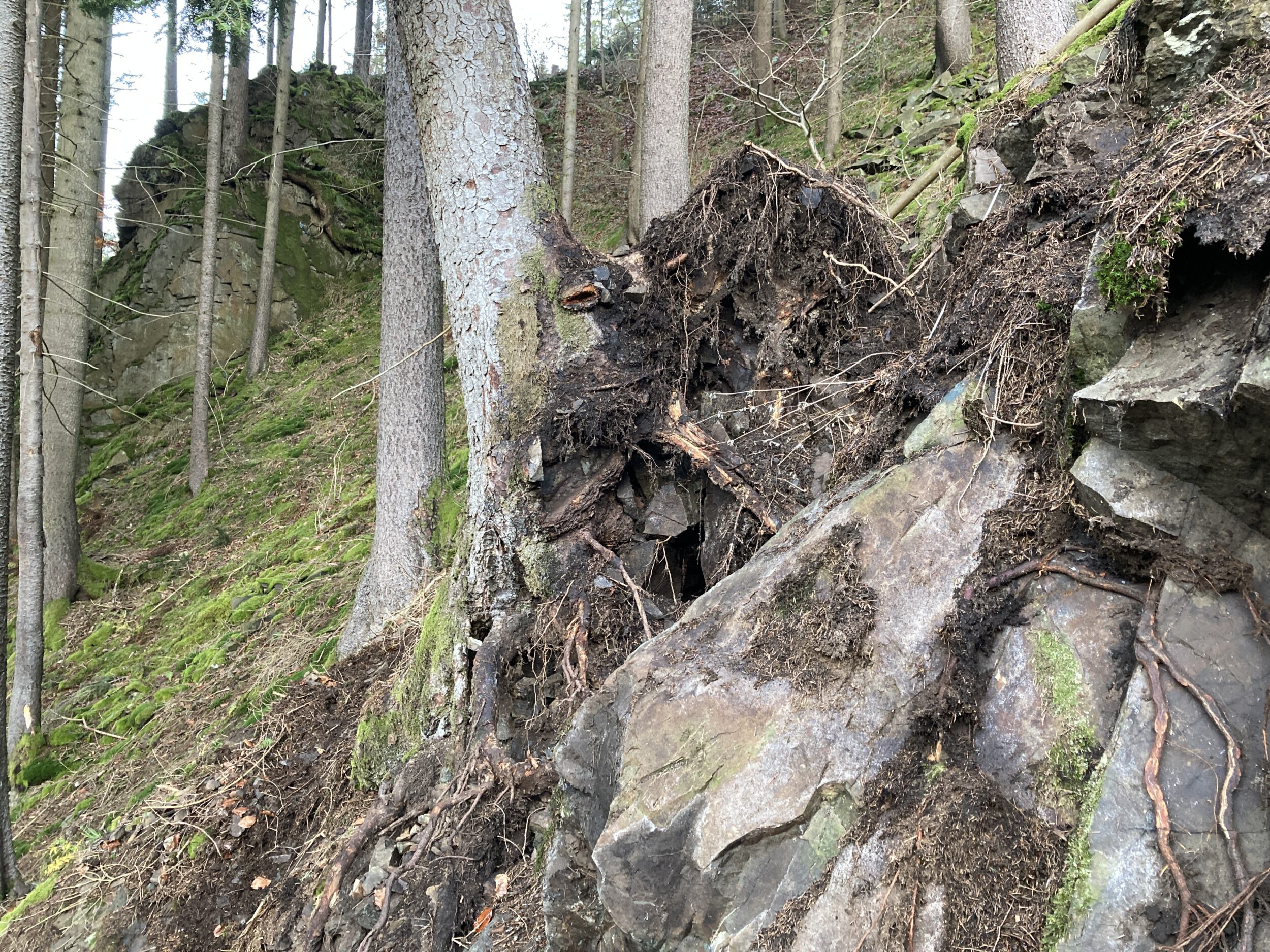

In an approx. 2.5 km long section of the B 173 federal road south-west of Schwarzenbach am Wald, steep slopes and rocky embankments at the edge of the road represented potential danger zones for road users. The hazardous situation was assessed by an expert on the basis of site investigations and suitable safety measures were designed. The construction of interlinking, rockfall protection and wire fencing increased the safety of road users against geohazards such as rockfall and rockslides along the heavily frequented section of road.

Services

Assessment and recording of potential rock and blockfall hazards
Carrying out a risk analysis with regard to the federal highway as a protected object
Software-supported simulation of the risk of falling rocks
Planning and dimensioning of safety measures
Preparation of a bill of quantities including planning documents
On-site construction supervision during the execution of the safety measures
